SIGI: A First-of-its-Kind Satellite Mission

SIGI was a first of its kind mission for Reflex Aerospace and this is the mission patch to commemorate the mission

Proven In-Orbit Satellite Performance

Discover real-world, in-orbit performance data for Reflex Aerospace’s SIGI satellite, validated after more than one year in space. The SIGI mission showcases a flight-proven platform engineered for the most demanding space missions. Our white paper provides comprehensive insights into how this 109 kg remote sensing satellite achieved complete mission success, highlighting its exceptional reliability and continuous operational efficiency over thousands of orbital cycles. What makes SIGI's performance stand out?

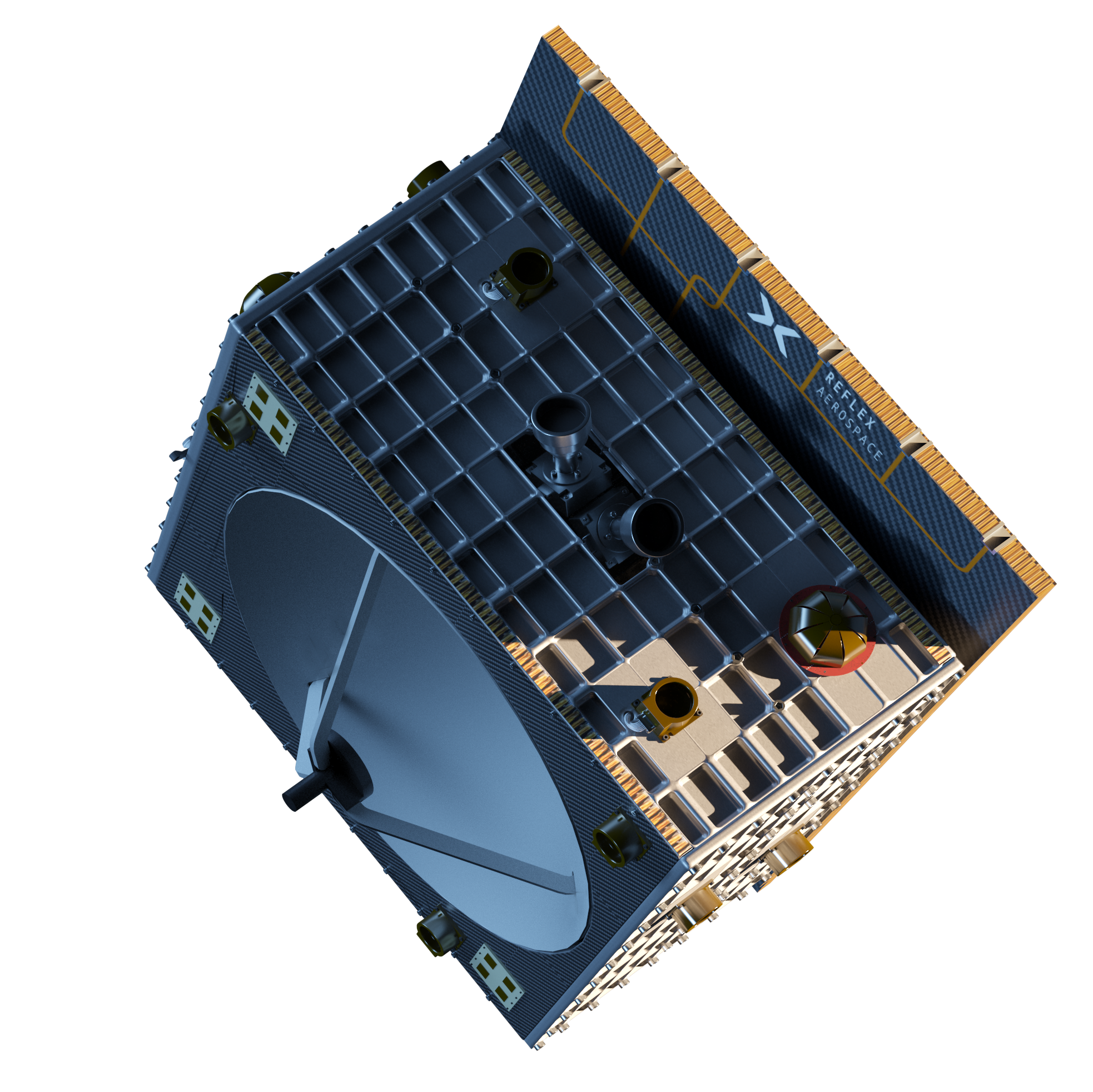

rendering of sigi reflex aerospace's first satellite mission

High Performance. No Compromises.

SPECIFICATIONS FOR A CUSTOM SATELLITE SOLUTION

Reflex Aerospace developed SIGI utilizing our innovative OmniFlex customizable satellite configuration to precisely meet and exceed demanding mission requirements. This adaptable platform allows for rapid flexibility and tailored solutions for diverse space applications.

- 510 km Sun Synchronous Orbit (~97,4° inclination)
- Local time of the ascending node (LTAN) 22:30
- 1-year planned mission duration
- Total mass: 109 kg
- 900 W peak power
- 500 Wh usable battery capacity
- 330 W solar array nominal power generation
- S-band TMTC at 1 Mbit/s Uplink 128 kbit/s
- X-band up to 80 Mbit/s
