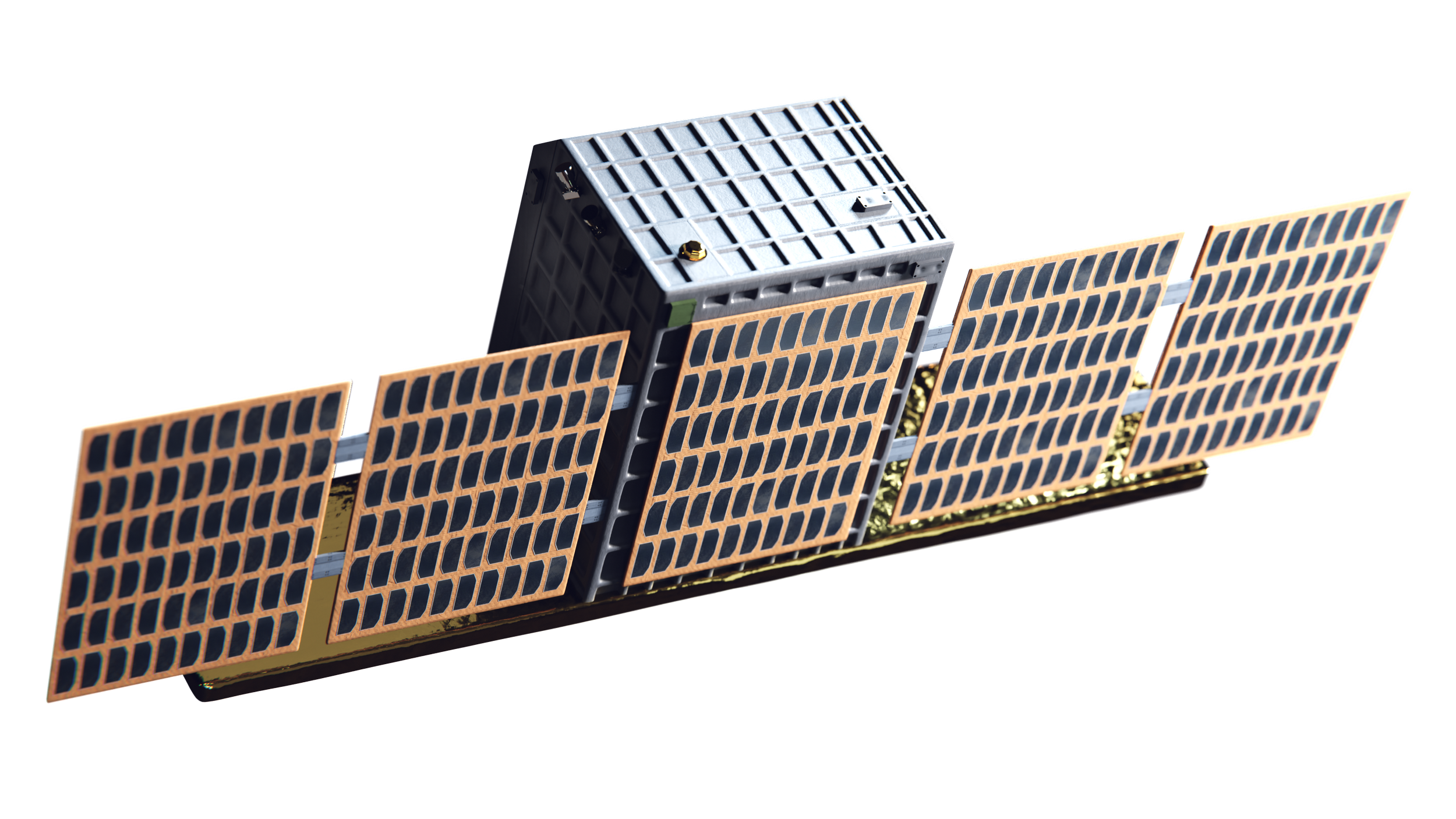

an example of what a SAR satellite may look like as delivered by reflex aerospace

Meet the OmniFlex TSAR

From Spotting to Awareness

Reflex’s High-Precision (OmniFlex HiPr) platform, in combination with an outstanding SAR payload, is developed to enable very high-resolution (VHR) Earth observation applications with 24/7 monitoring under any weather conditions.

Civil & Defense Target Applications

an example of reflex aerospace's TSAR satellite configuration to synthetic aperture radar solutions

Maritime Security
Border and infrastructure monitoring
Disaster relief and prevention
Environmental impact assessment
All-weather reconnaissance and surveillance

- X-band high-sensitivity SAR payload
- Phased Array technology with rapid electrical beam steering for coverage of areas of interest
- High-capacity power subsystem to support increased payload duty cycle
- Reflex's Autonomous Reconfigurable Computer (ARC) with in house developed avionics unit
- Multi-core ARM-based architecture
- Security by Design with Linux-based OS
- SW-defined architecture for in-orbit mission adaption
- Full redundancy and 1 TB of redundant storage
- In-orbit image processing and analysis ready
- AI application compatible
Reflex follows all relevant space debris mitigation guidelines.

The Specs

MISSION LAYOUT


        Orbit
        450 - 1000 km

        Inclination
        SSO or Individual

        Lifetime
        3-5 Years

        Configuration
        Single or multi-satellite

PAYLOAD (@500km)


        Imaging Modes
        Spot, Strip, Scan, and More

        Spot Resolution (slant range x azimut)
        0.15 x 0.3 m

        Strip Resolution (slant range x azimut)
        0.5 x 2 m

        Strip Swath
        5 x 5 km

        Strip Swath
        30 x 140 km

        Access Region
        20-45 deg

        Polarization
        Full (VV/HV/VH/HH)

ATTITUDE, POSITION, and ORBIT CONTROL


        Architecture
        Agile 3-axis Stabilized

        Pointing Accuracy
        < 0.01 deg (3σ)

        Pointing Knowledge
        < 0.005 deg (3σ)

        Agility
        2 deg/s

        Position Knowledge
        < 1m

        Propulsion
        Electric

PLATFORM


        Wet Mass
        425kg

        Power (Nominal)
        400 W

        Power (Peak)
        10kW

        Battery Capacity
        3kWh

COMMUNICATIONS


        TMTC
        S-Band

        Payload Data
        X-Band

        Payload Data Downlink Rate
        Up to 1 Gbps

Options

Extended design lifetime

Adapted propulsion (thrust, delta-v) for any mission profile.

Extended on-board data storage up to 4 TB

Adaptable resolution and swaths based on payload configuration.

Scalable power system

Optional secondary payloads for extended missions.

High-throughput Ka/Ku or optical (S2S, S2G) data links
