Meet the OmniFlex HiPr

High Precision Made To Order

Don’t compromise on your mission. Unleash the full potential of your payload by providing it with the volume, power, and performance to generate the highest quality data for your use case.

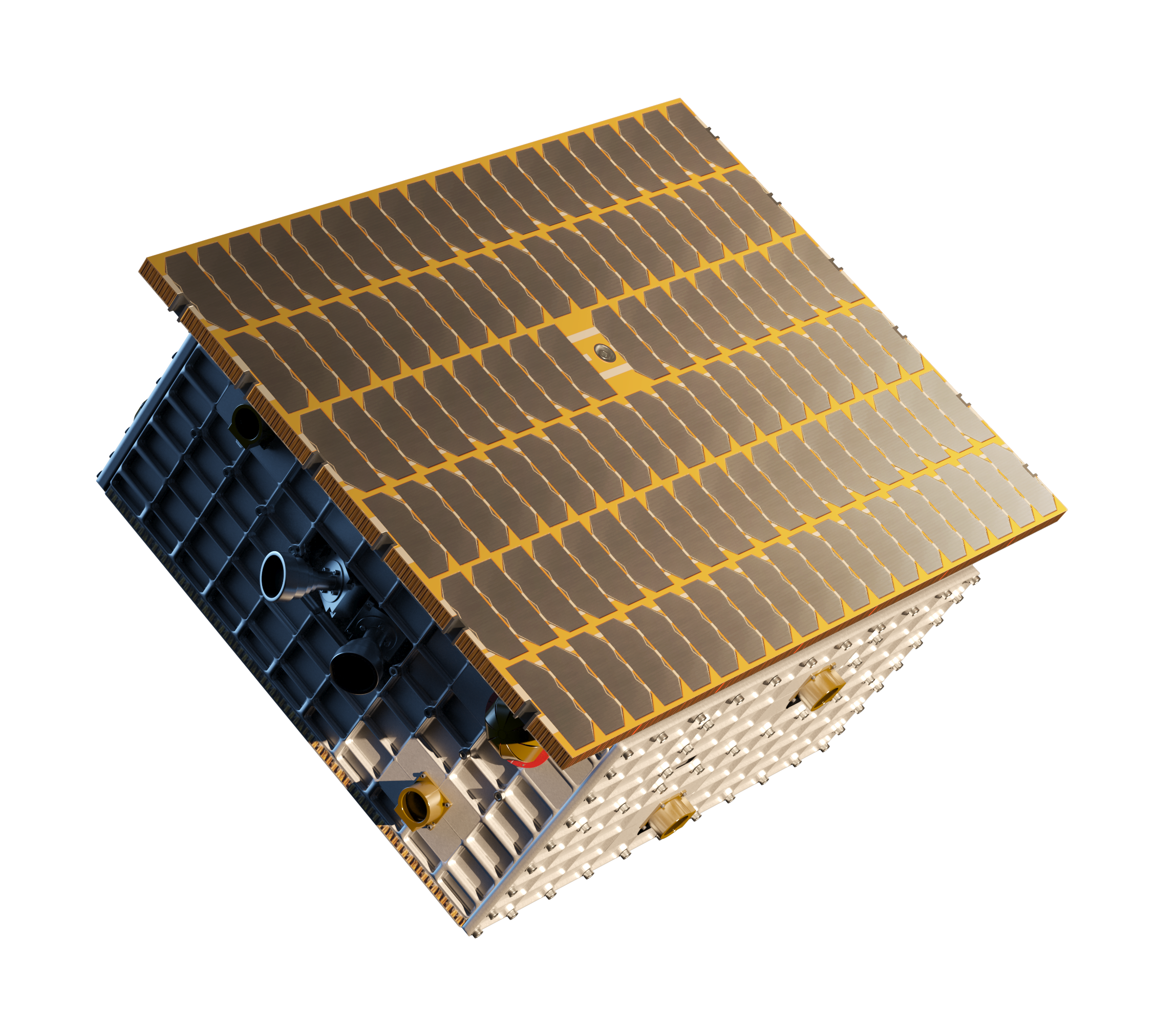

the omniflex hipr is capable of a multiple payloads for high data missions

The Highlights

  • Customized payload-centric platform designs to accomodate any size and geometry

  • Delivery time of 1st unit within 12 months. Subsequent serial production possible

  • The platform allows payloads up to 250 kg

  • Single or multi-payload capabilites

  • Compatibility with a variety of launch vehicles

  • Deploy exotic instruments, individually or in combination. Carry out the most demanding tasks such as precise and high-resolution atmospheric and ground measurements.

  • Civil and Defence

    • Imaging over the entire spectrum, from Visual (VIS) to Infrared (Near-, Short Wave-, Thermal-IR)

    • LiDAR

    • Synthetic Aperture Radar (SAR)

    • Optical Data Links (Laser Com)

    • In-orbit image processing and analysis ready

    • AI-application compatible

    • Linux-based OS

    • Security by design
      SW-defined architecture

    • Full redundancy

  • Reflex follows all relevant space debris mitigation guidelines.

The Specs

MISSION LAYOUT

Orbit Full range of LEO
Lifetime (Design) 3+ Years (LEO)
Total Satellite Mass 75 to 500 kg
Payload Mass ~10 to 250 kg

ONBOARD DATA HANDLING

Unit Reflex ARC (Autonomous Reconfigurable Computer)
Data Processing Multi-core ARM-based Architecture
Primary Data Interface Ethernet
Storage 1 TB Redundant Storage

ATTITUDE, POSITION, and ORBIT CONTROL

Architecture Agile 3-axis Stabilized
Pointing Accuracy < 0.01 deg (3σ)
Pointing Knowledge < 0.005 deg (3σ)
Agility 2 deg/s
Position Knowledge < 1m
Propulsion Electric

PAYLOAD POWER

Nominal 150 W
Peak 500+ W

COMMUNICATIONS

TMTC S-Band
Payload Data X-Band
Payload Data Downlink Rate Up to 200 Mbps

Options

BEYOND

Extended design lifetime to 7+ years

EXTENDED POWER

Upgrade payload power into kW range

PROPULSION

Tailored solutions of thrust and delta-v levels for any mission profile

COMMUNICATIONS

Utilize Optical Data Links (Space2Space) and/or high-throughput X/Ka/Ku-Band RF.
